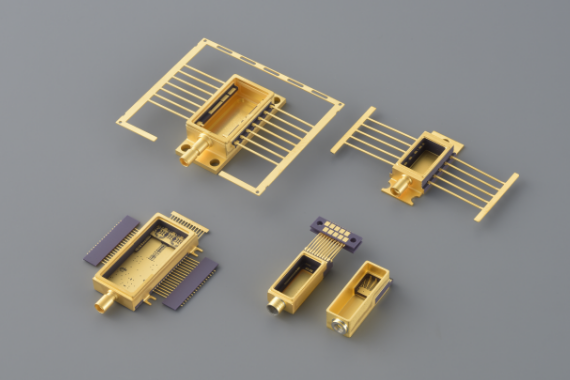

Optical Packages

Overview

The optical packages are used in high-performance O/E conversion elements, laser oscillators, and others that are mainly used for mid- to long-distance applications in optical communication network. Recently, the demands for the packages are increasing in association with the spread of data centers.

Features

High reliability

By brazing ceramics and metal materials for sealing, we provide products that have secured long-term airtightness and reliability required for optical networks.

Broadband transmission characteristics

By our advanced electric designs and highly accurate process control, we provide products that are also compatible with broadband communications at 96/128 GBaud.

Product usage

Transmission use

  • HB-CDM, TOSA

Reception use

  • ICR, ROSA

Transmission/reception use

  • TROSA, COSA

Laser

  • PUMP, ITLA, etc.

Product specifications

Product specifications
Ceramics HTCC* mainly made of atomized alumina
Electrode Tungsten (partly molybdenum)
No. of layers 10 to 30 layers
Plating Electrolytic Ni/Au, electrolytic Ni/Pd/Au
Bonding Applicable to various metallic parts (Kovar, CuW).

* HTCC:High Temperature Co-fired Ceramic

Product Lineup

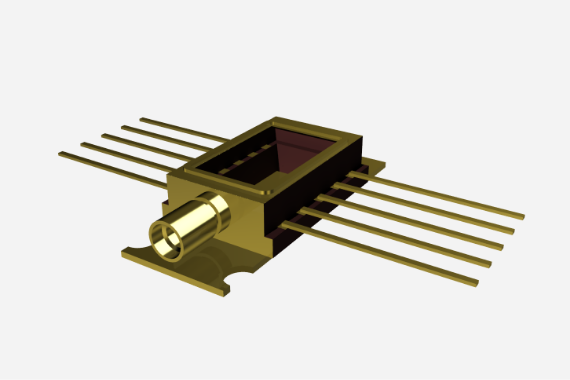

Pump Laser
Pump Laser

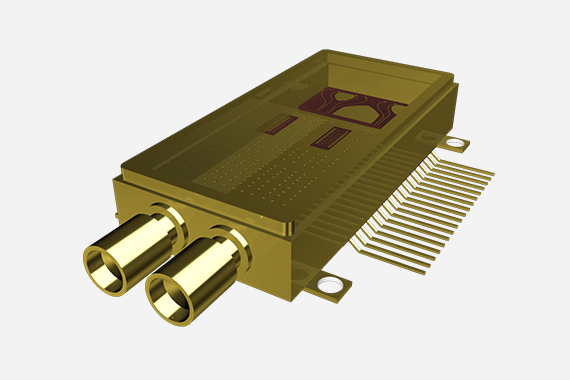

HB CDM
HB CDM

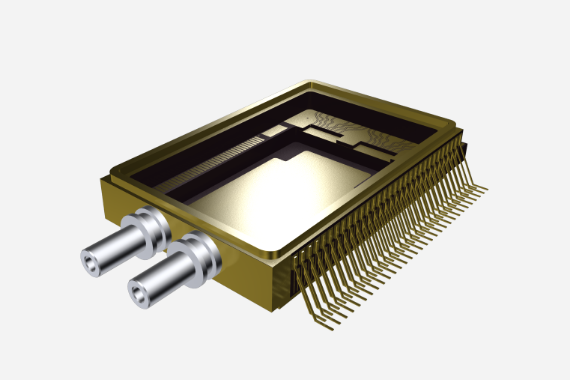

ICR(Integrated Coherent Receiver)
ICR(Integrated Coherent Receiver)

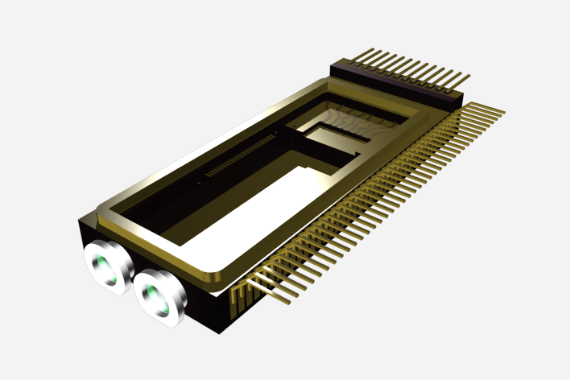

IC TROSA
IC TROSA

For the information on the products,
contact us via the following.
